Waterproof rubber mats for stables


Do your horse a favour and fit its stable with our waterproof rubber mats. They can save up to 70 % on bedding, as you only need enough bedding to soak up the urine.



Our rubber mats provide thermal insulation and sound-deadening, they are resistant to urine and droppings, easy to clean and meet high quality standards, reflected in their very long lifespan. At the same time, their non-slip surface provides secure grip and makes it much easier for your horse to get up in its stable.

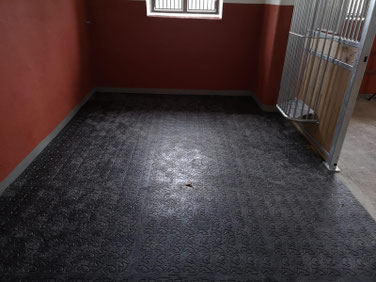

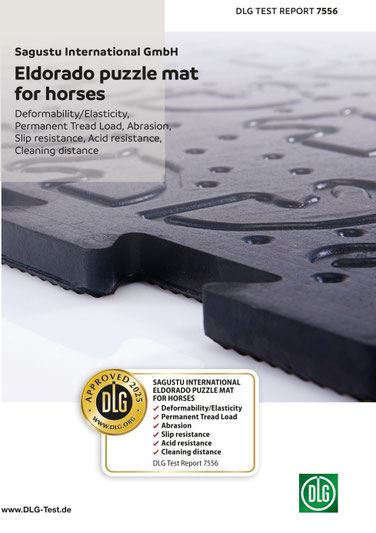

Eldorado-Puzzle mat with Horse head profile

The Eldorado interlocking mat can be joined so well that it creates an almost seamless covering. This provides the perfect flooring for your horse.



Measurements:



  • Available in two different sizes
  • Thickness: 16 mm
  • Colour: black
  • Top surface: Horse’s head profile
  • Underside: Groove profile
  • Interlocking joint system
  • Depending on the area there is hardly any wastage thanks to the addition of half Eldorado interlocking mats (0.50 m x 1.00 m)

Mat sizes available:



  • 1.00 m x 1.00 m                                      (Interlocking system on 4 sides)
  • 0.50 m x 1.00 m                                       (interlocking system on 3 sides - 1 long side without interlocking tabs)

Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.



Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.



Information on cutting can be found here.





Eldorado-air cushion mat with tongue and groove

The large, circular air cushions on the underside provide maximum thermal insulation and softness. Superb elasticity promises the most comfortable stable floor.





Measurements:



  • Size: 1.20 m x 0.80 m
  • Covered area: 1.17 m x 0.77 m, 1 mat = 0.90 sqm
  • Thickness: 30 mm
  • Colour: black
  • Surface: Hammer groove profile
  • Underside: Circular air cushions
  • Tongue and groove system on four sides



Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.





Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.



Information on cutting can be found here.



As rubber expands when heated, leaving too little wall clearance can cause it to pucker.



SAGUSTU-stable mat maxi

The Maxi stable mats give a seamless covering over large areas. Due to its size, this mat weighs 240 kg - please bear this in mind when preparing for installation.





Measurements:



  • Size: 3m x 4m
  • Thickness: 16 mm
  • Colour: black
  • Top surface: Hammer groove profile
  • Underside: Groove profile
  • No special joining system, installation: edge to edge



Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.



Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.





Information on cutting can be found here.





SAGUSTU-Duplex Stable mat

The edge to edge system makes the Duplex stable mats quick and easy to install. The hammered surface profile is easy to clean and provides good grip. The grooves on the underside mean that our Duplex stable mats are very flexible too.



Measurements:



  • Available in a choice of sizes
  • Thickness: 18 mm
  • Colour: black
  • Surface: coarse, hammered profile
  • Underside: broad, grooved profile
  • No special joining system, installation: edge to edge



Mat sizes available:



  • 1.00 m x 1.50 m
  • 1.00 m x 1.65 m
  • 1.25 m x 1.65 m
  • 1.20 m x 1.75 m
  • 1.20 m x 2.20 m
  • 1.20 m x 2.50 m



Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.





Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.







Information on cutting can be found here.







SAGUSTU-rhomb stable mat

The Diamond stable mats have a small diamond pattern surface profile. This gives them excellent non-slip properties, essential for getting up safely. The edge to edge system means that they're quick to install too.



Measurements:



  • Available in a choice of sizes
  • Thickness: 17 mm
  • Colour: black
  • Top surface: small diamond pattern
  • Underside: smooth
  • No special joining system, installation: edge to edge



Mat sizes available:



  • 1.00 m x 1.50 m
  • 1.00 m x 2.00 m
  • 1.22 m x 1.83 m



Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.





Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.





Information on cutting can be found here.



SAGUSTU-universal stable mat

The Universal stable mats are characterised by the pimpled surface profile which is non-slip and easy to clean.



Measurements:



  • Size: 1.22 m x 1.83 m
  • Thickness: 17 mm
  • Colour: black
  • Top surface: Pimpled profile
  • Underside: Groove profile
  • No special joining system, installation: edge to edge



Bedding recommendations:



We recommend the use of high-absorbency bedding (wood shavings or similar). The bedding will also help to seal the joints. Any remaining liquid that seeps between the mats will evaporate.



Subsurface:



The subsurface must be level and sealed, concrete or paving. No incline needed.



Information on cutting can be found here.



SAGUSTU-liquid rubber flooring

We’d like to draw your attention to the fact that SAGUSTU Rubber Screed is made of natural rubber and is solvent-free. This environmentally-friendly composition means that a chalky deposit may form on the surface at certain levels of humidity or residual moisture in the ground beneath it. This can be removed using a standard limescale remover. Slight hoofprints are created in the surface when the puffy upper latex layer gets squashed. This squashing function is important for the stability of the horse; it will not damage the covering. Installation instructions will be supplied when your goods are delivered, once you have placed your order.

Rubber Screed can be laid without joins, creating a long-lasting, seamless and waterproof rubber floor covering. Impervious to PH neutral cleaning agents. A thickness of 20 mm is recommended for use in stables. Installation on wood, concrete, interlocking paving, metal and other surfaces possible. The surface can be made smooth and closed cell with the aid of a spiked roller.





On-site professional installation by our experienced team possible on request.

Content:



  • 3 components (rubber granulate, natural rubber, binding agent)
  • Black colour (other colours - red-brown or dark green - available at additional cost)
  • Weight approx. 50 kg / pack
  • Yield per coating thickness
  • from 15 mm: 3 sqm / pack
  • Yield per coating thickness
  • from 20 mm: 2.25 sqm / pack

Repair packs with the following yields when laid at a thickness of 10 mm are also available:



  • 2 sqm / pack
  • 1 sqm / pack
  • 0.5 sqm / pack ("mini repair kit")


Recycled plastic tongue and groove flooring


SAGUSTU-solid stable flooring (made from plastic) with tongue and groove

Offers many benefits on non-concrete ground. Small slabs means less wastage! Easy to sweep. Circular air cushions on the underside provide excellent thermal insulation. Pimpled surface gives better grip than concrete. Tongue and groove system creates a solid join. Can be installed with cross or T joints.



Measurements:



  • Size: 1.20 m x 0.80 m
  • Covered area: 1.16 m x 0.76 m, 1 mat = 0.89 sqm
  • Thickness: 24 mm
  • Colour: Anthracite
  • Surface: Pimpled profile
  • Underside: Circular air cushions
  • Tongue and groove system on four sides



Information on cutting can be found here.



SAGUSTU-solid stable flooring (made from plastic) with tonque and groove

Ideally suitable for mounting on non-concrete areas! Easy to sweep. Circular air cushions on the underside provide excellent thermal insulation. Pimpled surface gives better grip than concrete. Tongue and groove system creates a solid join. Can be installed with cross or T joints.



Measurements:



  • Size: 1.20 m x 0.80 m
  • Covered area: 1.16 m x 0.76 m, 1 mat = 0.89 sqm
  • Thickness: 43 mm
  • Colour: anthracite
  • Surface: Pimpled profile
  • Underside: Circular air cushions
  • Tongue and groove system on four sides



Information on cutting can be found here.



SAGUSTU-solid stable flooring for high load with tongue and groove

Ideally suited for stabilising non-concrete areas. Circular air cushions on the underside provide excellent thermal insulation. The cross struts on the underside makes this model ideal for heavy wear. Suitable for e.g. heavy horses, can be driven over with forklift trucks or heavy machinery. Pimpled surface gives better grip than concrete. Firm bonds thanks to the tongue and groove system. Installation with cross joints or T-joints.





Measurements:

  •
  • Size: 1.20 m x 0.80 m
  • Covered area: 1.16 m x 0.76 m, 1 mat = 0.89 sqm
  • Thickness: 43 mm
  • Colour: anthracite
  • Surface: Pimpled profile
  • Underside: Circular air cushions
  • Tongue and groove system on four sides



Information on cutting can be found here.



SAGUSTU-solid stable flooring (without tongue and groove

Can be used to protect your wooden floors or concrete surfaces, for example. Horses stand on a more supportive surface than concrete. The edge to edge system makes installation easy. Installation with cross joints or T-joints. Suitable for ponies and smaller horses.



Measurements:



  • Size: 1.20 m x 0.80 m
  • Thickness: 12 mm
  • Colour: anthracite
  • Surface: Pimpled profile
  • Underside: smooth
  • No special joining system, installation: edge to edge



Information on cutting can be found here.
