Stable and open barn mats: water permeable
Stable and open barn mats: water permeable
The water-permeable rubber mats are made of rubber granules. Liquids/urine are drained through the mats and discharged at the bottom.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
The water-permeable rubber mats are made of rubber granules. Liquids/urine are drained through the mats and discharged at the bottom.
The concrete, asphalt, or composite paving slab must have a drainage system and a slope of approximately 2–3%. The exception is the SAGUSTU-DK drainage mat without stilts. This can be installed on a compacted, graded gravel substructure.
The surface must be free of holes and unevenness. These must be leveled beforehand!
Bedding to absorb urine is hardly needed anymore, which also minimizes dust pollution. This creates a better climate in the stable and is a significant advantage for horses with respiratory diseases.
Not only do you save a lot of money on bedding, but the amount of work involved in mucking out is also minimized enormously and the volume of manure produced is significantly reduced, which makes disposal much easier.
Drainage mats are highly slip-resistant thanks to their open-pored surface, providing a secure footing and making it much easier for horses to get up and down. No more open, sore joints! They also provide heat insulation and protect your horses' joints and hoof mechanism.
The elastic rubber mats also reduce the noise level, which ensures more peace and quiet in the stable.
The mats should be removed approximately 2-3 times a year and cleaned with a pressure washer. This prevents potential odor buildup and improves the mats' functionality.
SAGUSTU Drain Mat Premium
Product description
Our SAGUSTU drainage mat ensures very fast drainage thanks to the conical stilts on the underside. The high stilts provide optimal thermal insulation. The open-pored surface offers optimal grip. It's also ideal for horses with allergies.
Drainage function:
Urine flows through the countless small channels in the mat and is then drained between the stilts into the drain.
Subsurface:
Installation on concrete or concrete interlocking paving (solid subsurface). A slope of approximately 2-3% and a drainage system are required.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 0.50 m x 1.00 m
Thickness: 55 mm
Weight: 37 kg/m²
Color: black and reddish brown
Top: open-pored
Underside: conical stilts
The SAGUSTU drain mats are coated with a silicone layer during the manufacturing process. Therefore, before first use, please use water with a little dishwashing liquid or detergent and scrub the mats thoroughly with a coarse brush.
The water permeability is then given from the beginning.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.

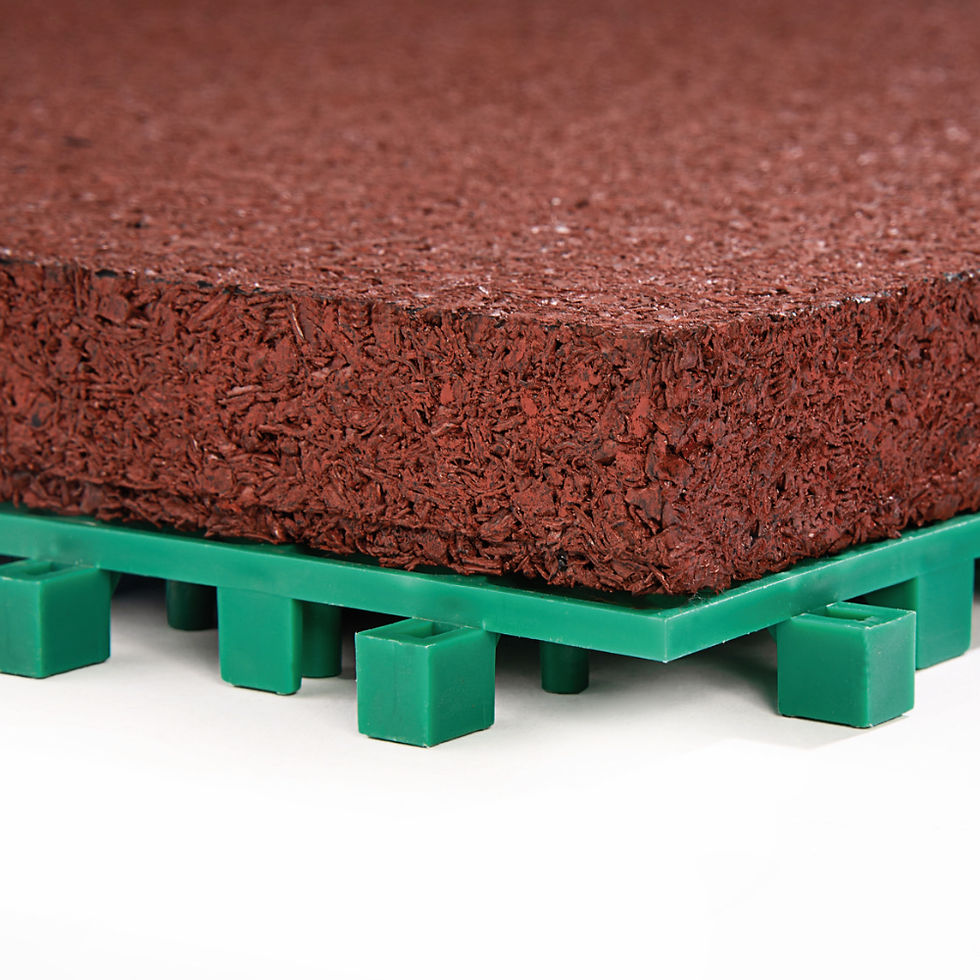

SAGUSTU drain grate mat
Product description
The drain grate mat is a combination of the smooth SAGUSTU-DK drain mat and an 18 mm high plastic grate. The urine- and acid-resistant plastic grate replaces the stilts of a conventional drain mat and ensures the fastest possible drainage.
Drainage function:
Urine and water are drained through the mat's fine channels directly over the plastic grate. The small plastic feet ensure faster drainage.
Subsurface:
Installation on concrete or concrete paving (solid subsurface). A slope of approximately 2-3% and a drainage system are required. The grating is installed first and simply slotted together, then the mats are placed on the grating. We recommend securing the mats around the edges (e.g., with a wooden or aluminum rail) to prevent the rubber mats from slipping.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 1.00 m x 1.00 m
Thickness: Mat 30 mm + grate 18 mm
Weight: 30 kg/m²
Mat color: reddish brown or black
Top side of mat: open-pored (without stilts)
Underside of mat: open-pored (without stilts)
The SAGUSTU drain mats are coated with a silicone layer during the manufacturing process. Therefore, before first use, please use water with a little dishwashing liquid or detergent and scrub the mats thoroughly with a coarse brush.
The water permeability is then given from the beginning.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
SAGUSTU-DK drainage mat with stilts
Product description
The SAGUSTU-DK drainage mat with stilts has small square stilts on the underside that serve as drainage and thermal insulation. The surface offers optimal slip resistance.
Drainage function:
Urine or water flows through the drainage mats via countless small channels and is drained away on the underside.
Subsurface:
Installation on concrete or concrete interlocking paving (solid subsurface). A slope of approximately 2–3% and a drainage system are required.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 1.00 m x 1.00 m
Thickness: 30 mm
Weight: 23 kg/m²
Color: reddish brown or black
Top: open-pored
Bottom: square stilts
The SAGUSTU drain mats are coated with a silicone layer during the manufacturing process. Therefore, before first use, please use water with a little dishwashing liquid or detergent and scrub the mats thoroughly with a coarse brush.
The water permeability is then given from the beginning.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
SAGUSTU-DK drainage mat without stilts
Product description
The SAGUSTU-DK drainage mat without stilts is highly slip-resistant due to its open porosity. It's ideal for installation on gravel or slatted floors.
Drainage function:
Urine or water flows through the drainage mats via countless small channels and is drained away on the underside.
Subsurface:
Non-concrete subfloor with compacted gravel, possibly with a chippings leveling layer to achieve a flat, level surface. Also suitable for installation on slatted floors.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 1.00 m x 1.00 m
Thickness: 30 mm
Weight: 27 kg/m²
Color: reddish brown or black
Top: open-pored (without stilts)
Underside: open-pored (without stilts)
The SAGUSTU drain mats are coated with a silicone layer during the manufacturing process. Therefore, before first use, please use water with a little dishwashing liquid or detergent and scrub the mats thoroughly with a coarse brush.
The water permeability is then given from the beginning.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
SAGUSTU drainage mat Redu
Product description
The SAGUSTU Redu drainage mat is 40 mm thick. The square stilts ensure good drainage and thermal insulation. The open-pored surface provides optimal grip. It's also ideal for horses with allergies.
Drainage function:
Urine flows through the countless small channels in the mat and is then drained between the stilts into the drain.
Subsurface:
Installation on concrete or concrete interlocking paving (solid subsurface). A slope of approximately 2-3% and a drainage system are required.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 1.00 m x 1.00 m
Thickness: 40 mm
Weight: 26 kg/m²
Color: black
Top: open-pored
Bottom: square stilts
The SAGUSTU drain mats are coated with a silicone layer during the manufacturing process. Therefore, before first use, please use water with a little dishwashing liquid or detergent and scrub the mats thoroughly with a coarse brush.
The water permeability is then given from the beginning.
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
SAGUSTU elastic mat with connectors
Product description
The SAGUSTU elastic mats with connectors have square stilts on the underside. The connectors between the mats provide additional support. They are installed in a T-shaped system.
Drainage function:
Urine or water flows through the drainage mats via countless small channels and is drained away on the underside.
Subsurface:
Installation on concrete or concrete interlocking paving (solid subsurface). A slope of approximately 2–3% and a drainage system are required.
Cutting:
With a jigsaw with a serrated blade or a hand-held circular saw.
Dimensions:
Dimensions: 0.50 m x 0.50 m
incl. 4 connectors per mat
Thickness: 40 mm
Weight: 31 kg/m²
Color: reddish brown
Top: open-pored
Bottom: square stilts
Please note:
To prevent the mats from slipping, we recommend securing them to the edges using squared timber or aluminum rails, if there is no wall or similar support.
Rubber can expand when heated, and too little distance from the wall can lead to waviness.
